Invisible Indexes (11g)

An invisible index is invisible to the optimizer as default.

Using this feature we can test a new index without effecting the execution plans of the existing sql statements or we can test the effect of dropping an index without dropping it.

create index <IndexName> on <TableName> (<columnNames>) invisible;

USER_INDEXES has a new column named VISIBILITY to indicate whether the index is visible or not.

select index_name,VISIBILITY from user_indexes where index_name=<INDEX NAME>;

There is a new initialization parameter modifiable at system or session level called OPTIMIZER_USE_INVISIBLE_INDEXES.

This parameter is FALSE as default, meaning the optimizer will not consider invisible indexes when evaluating alternative execution plans.

We can alter an existing index to become invisible or visible.

alter index <IndexName> visible;

alter index <IndexName> invisible;

Generate the Explain Plan and we don't see that the Invisible index used.

Now alter the session parameter : optimizer_use_invisible_indexes=true

alter session set optimizer_use_invisible_indexes=true;

generate the Explain Plan and we can see that the Invisible index used.

Example :

Create table kk_invisibleIndex_test_tab ( x number, y number, z number);

insert into kk_invisibleIndex_test_tab
select  level,level+1,level+2
from    dual
connect by level <= 100000 ;
commit;

select * from kk_invisibleIndex_test_tab where z=300;

Plan
SELECT STATEMENT  ALL_ROWSCost: 105  Bytes: 156  Cardinality: 4
    1 TABLE ACCESS FULL TABLE KK_INVISIBLEINDEX_TEST_TAB Cost: 105  Bytes: 156  Cardinality: 4

create index kk_Invisible_index on kk_invisibleIndex_test_tab (z) INVISIBLE;

select index_name,Index_type,table_name,visibility from user_indexes where index_Name='KK_INVISIBLE_INDEX';

INDEX_NAME                 INDEX_TYPE        TABLE_NAME                                     VISIBILITY
KK_INVISIBLE_INDEX       NORMAL             KK_INVISIBLEINDEX_TEST_TAB   INVISIBLE

select * from kk_invisibleIndex_test_tab where z=300;

Plan
SELECT STATEMENT  ALL_ROWSCost: 105  Bytes: 156  Cardinality: 4
    1 TABLE ACCESS FULL TABLE KK_INVISIBLEINDEX_TEST_TAB Cost: 105  Bytes: 156  Cardinality: 4

alter session set optimizer_use_invisible_indexes = true;

select * from kk_invisibleIndex_test_tab where z=300;

Plan
SELECT STATEMENT  ALL_ROWSCost: 2  Bytes: 39  Cardinality: 1
    2 TABLE ACCESS BY INDEX ROWID TABLE KK_INVISIBLEINDEX_TEST_TAB Cost: 2  Bytes: 39  Cardinality: 1
        1 INDEX RANGE SCAN INDEX KK_INVISIBLE_INDEX Cost: 1  Cardinality: 1

alter session set optimizer_use_invisible_indexes = false;

select * from kk_invisibleIndex_test_tab where z=300;


Plan
SELECT STATEMENT  ALL_ROWSCost: 105  Bytes: 156  Cardinality: 4
    1 TABLE ACCESS FULL TABLE KK_INVISIBLEINDEX_TEST_TAB Cost: 105  Bytes: 156  Cardinality: 4


alter index kk_Invisible_index VISIBLE;


select index_name,Index_type,table_name,visibility from user_indexes where index_Name='KK_INVISIBLE_INDEX';

INDEX_NAME                 INDEX_TYPE        TABLE_NAME                                     VISIBILITY
KK_INVISIBLE_INDEX       NORMAL             KK_INVISIBLEINDEX_TEST_TAB    VISIBLE

DBMS_PROFILER (PL/SQL)

The dbms_profiler package is a built-in set of procedures to capture performance information from PL/SQL.

1. dbms_profiler.start_profiler
2. dbms_profiler.flush_data
3. dbms_profiler.stop_profiler

The basic idea behind profiling with dbms_profiler is for the developer to understand where their code is spending the most time, so they can detect and optimize it.

Once you have run the profiler, Oracle will place the results inside the dbms_profiler tables.

The dbms_profiler procedures are not a part of the base installation of Oracle.

$ORACLE_HOME/rdbms/admin directory
proftab.sql - Creates three tables and a sequence and must be executed before the profload.sql file.

profload.sql - Creates the package header and package body for DBMS_PROFILER.  This script must be executed as the SYS user.



1. Starting a Profiling Session

    dbms_profiler.start_profiler ('Performance Test of a pl/sql block');


2. Flushing Data during a Profiling Session

   The flush command enables the developer to dump statistics during program execution without stopping the profiling utility. The only other time Oracle saves data to the underlying tables is when the profiling session is stopped


    dbms_profiler.flush_data();

3. Stopping a Profiling Session

   Once the developer stops the profiler, all the remaining (unflushed) data is loaded into the profiler tables.

    dbms_profiler.stop_profiler();

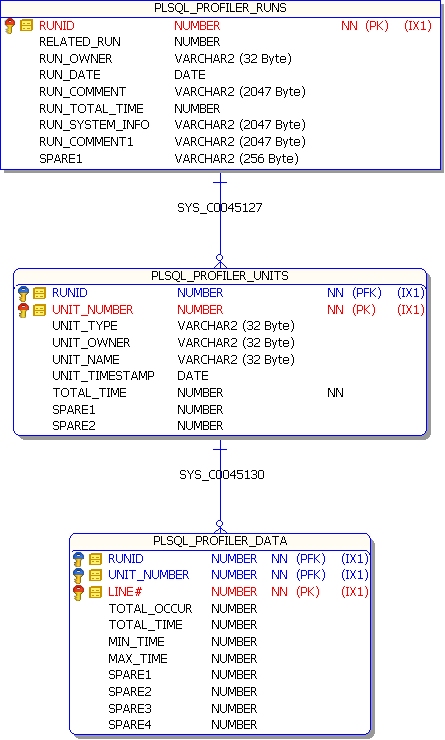

Profiler Data saves to the below set of tables.

1. plsql_profiler_runs

2. plsql_profiler_units

3. plsql_profiler_data



-- Total time spent on each run
select runid,
substr(run_comment,1, 30) as run_comment,
run_total_time/100000000000 as secs
from (select a.runid, sum(a.total_time) run_total_time, b.run_comment
from plsql_profiler_units a, plsql_profiler_runs b
where a.runid = b.runid group by a.runid, b.run_comment )
where run_total_time > 0
order by runid asc;


-- Percentage of time in each module, for each run separately

select p1.runid,
substr(p2.run_comment, 1, 20) as run_comment,
p1.unit_owner,
decode(p1.unit_name, '', '',
substr(p1.unit_name,1, 20)) as unit_name,
p1.total_time/100000000000 as secs,
TO_CHAR(100*p1.total_time/p2.run_total_time, '999.9') as percentage
from plsql_profiler_units p1,
(select a.runid, sum(a.total_time) run_total_time, b.run_comment
from plsql_profiler_units a, plsql_profiler_runs b
where a.runid = b.runid group by a.runid, b.run_comment ) p2
where p1.runid=p2.runid
and p1.total_time > 0
and p2.run_total_time > 0
and (p1.total_time/p2.run_total_time) >= .01
order by p1.runid asc, p1.total_time desc;

-- Percentage of time in each module, summarized across runs

select p1.unit_owner,
decode(p1.unit_name, '', '', substr(p1.unit_name,1, 25)) as unit_name,
p1.total_time/100000000000 as secs,
TO_CHAR(100*p1.total_time/p2.grand_total, '99999.99') as percentage
from plsql_profiler_units_cross_run p1,
plsql_profiler_grand_total p2
order by p1.total_time DESC;


-- Lines taking more than 1% of the total time, each run separate

select p1.runid as runid,
p1.total_time/1000000000 as Hsecs,
p1.total_time/p4.grand_total*100 as pct,
substr(p2.unit_owner, 1, 20) as owner,
decode(p2.unit_name, '', '', substr(p2.unit_name,1, 20)) as unit_name,
p1.line#,
( select p3.text
from all_source p3
where p3.owner = p2.unit_owner and
p3.line = p1.line# and
p3.name=p2.unit_name and
p3.type not in ( 'PACKAGE', 'TYPE' )) text
from plsql_profiler_data p1,
plsql_profiler_units p2,
plsql_profiler_grand_total p4
where (p1.total_time >= p4.grand_total/100)
AND p1.runID = p2.runid
and p2.unit_number=p1.unit_number
order by p1.total_time desc;


-- Number of lines actually executed in different units (by unit_name)

select p1.unit_owner,
p1.unit_name,
count( decode( p1.total_occur, 0, null, 0)) as lines_executed ,
count(p1.line#) as lines_present,
count( decode( p1.total_occur, 0, null, 0))/count(p1.line#) *100
as pct
from plsql_profiler_lines_cross_run p1
where (p1.unit_type in ( 'PACKAGE BODY', 'TYPE BODY',
'PROCEDURE', 'FUNCTION' ) )
group by p1.unit_owner, p1.unit_name;


-- Number of lines actually executed for all units
select count(p1.line#) as lines_executed
from plsql_profiler_lines_cross_run p1
where (p1.unit_type in ( 'PACKAGE BODY', 'TYPE BODY',
'PROCEDURE', 'FUNCTION' ) )
AND p1.total_occur > 0;


-- Total number of lines in all units
SELECT COUNT(p1.line#) AS LINES_PRESENT
FROM plsql_profiler_lines_cross_run p1
WHERE (p1.unit_type in ( 'PACKAGE BODY', 'TYPE BODY',
'PROCEDURE', 'FUNCTION' ) );



Note :
The main resource consumers are those lines that execute SQL.
Once the data is sorted by average execution time, the statements that are the worst usually contain SQL.
Optimize and tune the SQL


Example:

Create or replace function profiler_test_function return number is
begin
  dbms_lock.sleep(10);
  return 100;
end profiler_test_function;
/
show errors;

Create or replace procedure Profiler_test_procedure is
  loopcounter number:=10;
begin
   dbms_output.put_line('Start');
   loop
     dbms_lock.sleep(1);
     dbms_output.put_line(loopcounter);
     loopcounter:=loopcounter-1;
     exit when loopcounter=0;
   end loop;

   loopcounter :=10;
   loop
     dbms_output.put_line(profiler_test_function);
     loopcounter:=loopcounter-1;
     exit when loopcounter=0;
   end loop;

   dbms_output.put_line('End');
end Profiler_test_procedure;
/
show errors;




begin
   dbms_profiler.start_profiler ('Test Run1');
   Profiler_test_procedure;
   dbms_profiler.stop_profiler ;
end;
/

Results:

begin
   dbms_profiler.start_profiler ('Test Run2');
   Profiler_test_procedure;
   dbms_profiler.stop_profiler ;
end;
/
